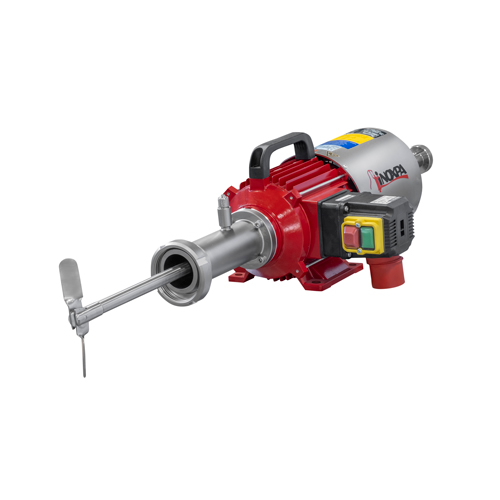

CPG Side-entry Agitator

Side-entry agitator for the winemaking industry.
Maintenance of solids in suspension.
Coupage (wine blending).
Gasification (SO2 or CO2).
Temperature homogenisation.

Request information

CPG Side-entry Agitator

Operating principle

The design of the agitator is based on the shaft that slides through a full bore valve into the tank and a propeller that opens automatically when started. The agitator shaft is provided with a C/StSt/EPDM mechanical seal.

Design and features

The CPG wine agitators are designed for installation in tanks full of product by means of a full bore valve without losing product and without special tools.
The standard mixing element is folding propeller type 12.
Electric motor 3 ph, 400 V. , 50 Hz, IP 55, 1450 rpm.
Manual deaeration valve.
Standard connections DIN 11851.
CLAMP OD connection: motor: 3 ph, 230 V, 460 V, 60 Hz, IP 55, 1700 rpm

Materials

Parts in contact with the product: 1.4404 (AISI 316L)
Gaskets: EPDM
Mechanical seal: C/StSt/EPDM
Surface finish: Matt

Options

Stainless steel trolley.
Valve for product injection, drainage or sampling.
Mechanical seal TuC/TuC/FPM.
Female connection to the motor.
Control panel and protection in compliance with the EC standards.
Special shaft length.
Different types of connections.

Documents

Operating principle

The design of the agitator is based on the shaft that slides through a full bore valve into the tank and a propeller that opens automatically when started. The agitator shaft is provided with a C/StSt/EPDM mechanical seal.

Materials and Options

Parts in contact with the product: 1.4404 (AISI 316L)
Gaskets: EPDM
Mechanical seal: C/StSt/EPDM
Surface finish: Matt

Stainless steel trolley.
Valve for product injection, drainage or sampling.
Mechanical seal TuC/TuC/FPM.
Female connection to the motor.
Control panel and protection in compliance with the EC standards.
Special shaft length.
Different types of connections.

Document № 20.027.33.01ES
Title Agitador Lateral CPG
File type .pdf
    Download
  • E-mail
Document № 20.027.33.01EN
Title Side Entry Agitator CPG
File type .pdf
    Download
  • E-mail
Document № 20.027.33.01FR
Title Agitateur Latéral CPG
File type .pdf
    Download
  • E-mail
Document № 20.027.33.01RU
Title Мешалка Боковая CPG
File type .pdf
    Download
  • E-mail
Document № MICPG-01_ES
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO AGITADOR ENOLOGICO CPG
File type .pdf
    Download
  • E-mail
Document № MICPG-01_EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS CPG AGITATOR FOR WINE
File type .pdf
    Download
  • E-mail
Document № MICPG-01_FR
Title INSTRUCTIONS D’INSTALLATION, DE SERVICE ET D’ENTRETIEN AGITATEUR OENOLOGIQUE CPG
File type .pdf
    Download
  • E-mail
